Scoilattolo Mobile Stairway Climber / Wheelchair

Technical Features & Benefits Of Our Wheel Chair Climber

• Maximum Load Capacity: 130 Kgs.
• Electronic System to control climbing operation & automatically governs the speed keeping it constant for Both up and down Stairs.
• Climbing up speed : 3 sec/step, for safer control.
• 12V 24Ah Dry Battery : sealed , rechargeable, without maintenance.
• 12V 150W Motor.
• Climb Up Autonomy : up to 72 floors (About 700 steps with max capacity).
• Led indicating battery charge status. Built in Battery Charger, with two colour Led indicating charge status.
• Negative electromagnetic brake system which activates automatically, It directly operates on drive system. triangular structure. Automatic activated brake which operates on wheels of each cluster, for added safety.
• Safety Device which operates on traction system in case of failure & stops automatically.
• Supporting Stand that under emergency condition allows you to make the device rest on stairs and in a stable equilibrium.

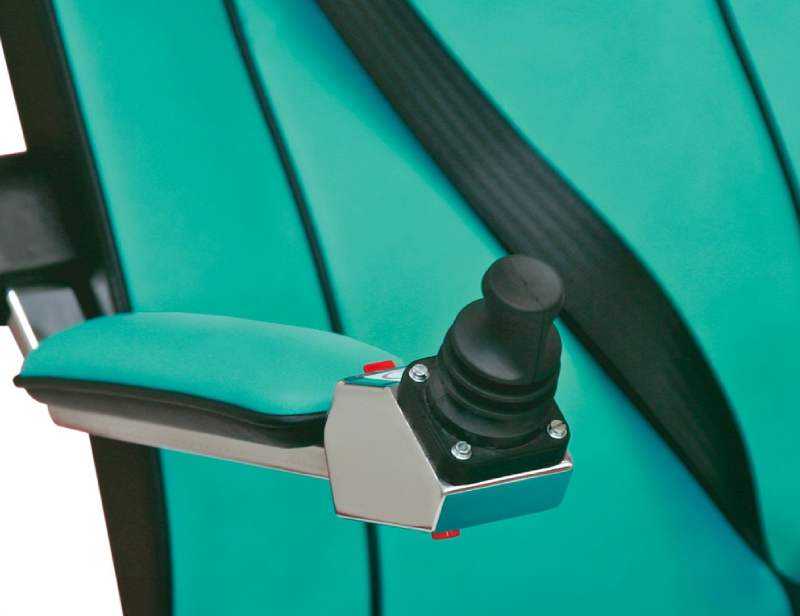

• Adjustable height driving handles, Electric controls on driving handles, with Emergency Button.
• Automatic switch off for prolonged standstill condition. (Battery saving feature).
• Step Minimum depth : 120mm,. Step Height comprised between 40mm to 200mm.
• Minimum operating space for L shaped landing : 800mm X 800mm.
• Minimum operating space for U shaped landing : 800mm X 1600mm.
• Stairs Minimum width : 650mm.
• Max. overcoming slop on straight stairs : 40 Degree equal to incline of 84%.
• Minimum Spiral Stair radius : 1300mm.
• Max. overcoming slope referred to inner rut of the stairway : 40 Degrees equal to incline of 84%.
• In case to overcome the spiral stairs with smaller radius and/or higher inclination, two attendants required.
• When operating on stairs, the attendant is not allowed to leave the stair climber alone, for safety.
• Non skid and non-stainable wheels.
• Seat : anatomic, at graduate density, padded seat with fire retardant & strain resistant coating.
• Included with a safety belt.
• Warranty : 24 Months.

Description

• The Scoiattolo stairlift (Made in Italy, a latest offering with technical excellence), is a comfortable armchair with electric motorization designed to allow people with mobility difficulties to overcome architectural barriers in a simple and fast way.
• Characterized by a unique movement system of its kind, The “Scoiattolo” Stairlift / Stair climber does not require any fixed application on the wall and simply requires the presence of a companion.
• Comfortable for the most persons, as the movement performed by the three wheels avoids jolts and allows a fluid use of the vehicle.
• The mobile stairway climber Scoiattolo is a comfortable powered chair, specifically designed for the overcoming of architectural barriers.
• With its unique motion system, it does not require any wall-mounted structure, and requires the presence of one trained attendant, only.
• It is equipped with two front pivoting wheels, thus allowing you to operate it also as a standard transit chair.
• Thanks to the movement system realized through a triangle of wheels, it makes it possible to overcome any type of staircase, either straight, spiral or with trapezoidal steps.
