Pressalit L Shape- Grab Bar

Specifications

Item number	RT114112
Product group	Handrails/ Grab Bar

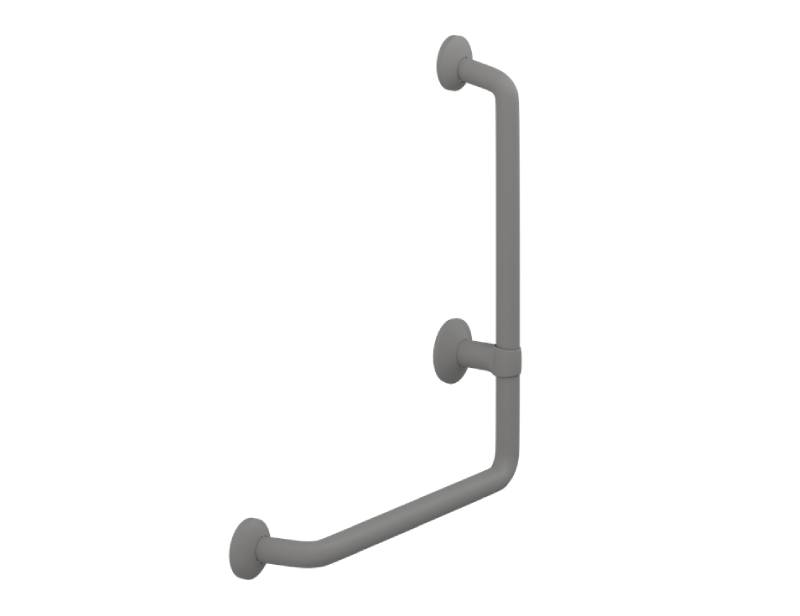

Product	PLUS 90° angle handrail / L shape Grab bar 400 x 475 mm
Colour	Anthracite grey
Product capacity	235 kg, When the handrail is loaded with 235 kg, each wall fastener is loaded with 56 kg. Handrails are tested with a 1.5 safety factor in accordance with the requirements in ISO 17966:2016.
Weight	1.432 kg
Gross weight	1.704 kg

Product description: PLUS handrails are high-quality and versatile, offering flexible combinations to complete a functional bathroom. With various options, they provide a reliable solution for greater independence.

Description: PLUS handrail, angle 90° – right, diameter 33 mm, A: 400 mm x B: 475 mm, for fixed mounting. The projection of 50 mm from the wall makes it easy to take hold of the rail. Inkl. wall rosette, which covers the fixings.

Intended use: PLUS handrails support walking and standing users in the bathroom and help seated users rise.

Materials: Basic material: Aluminium, Surface material: Polyester lacquer, Cover cap: Cycoloy plastic, Strap: Nylon (PA)

Ergonomy: The 33 mm diameter enables the rail to be held comfortably and firmly. The projection of 50 mm from the wall makes it easy to take hold of the rail.

Dimensioned drawing, mm

Cleaning: The product is to be cleaned with hot water or a mild soapy cleaning agent. Do not use chlorine based, corrosive or abrasive cleaners as it may result in the surface being damaged.

Declaration of conformity: CE UK MDR This product is in compliance with all relevant requirements of:
- Regulation (EU) 2017/745 on medical devices.
For the UK: - Medical Device Regulation (MDR) 2002 on medical devices.

Warranty: Pressalit makes a commitment to remedy material and manufacturing defects for a period of five years from the invoicing date.
